On30 5" Critter Turntable

  • On30 critter turntable. A motorised 5" pit turntable for small locos.
  • Small 5" turntable, full of character - great for Oe or On30
  • motorised  turntable.
  • Optional resin castings make up the pit walls.
  • Resin parts  - easily modified to suit your railroad situation
  • The standard kit has wooden walls
  • Critter turntable bridge frame
  • 3rpm motor with 4:1 steel reduction gears

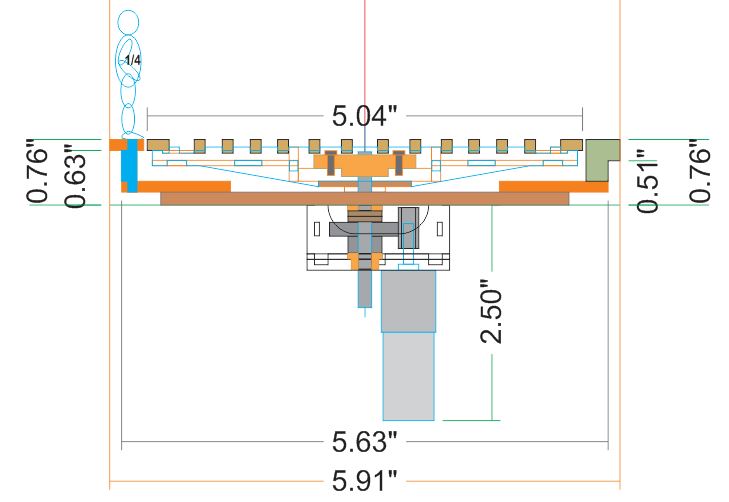

  • 5" On30 Turntable dimensions
  • On30 Critter Turntable. The original MK1 deck type, now superseded.
  • The MK1 5" On30 Critter turntable. Now retired from active service!
Price:
£49.50 Winter shutdown: back in Jan 2021
SKU:
KHT001
Scale:
Maximum Purchase:
2 unit(s)


Product Description

MOTORISED  5" On30/Oe TURNTABLE KIT!

This kit is now upgraded to a pit turntable.

With "stone" walls option.

With a bridge length of 5" (127mm) this turntable will accomodate most small narrow gauge locos.

The kit is suitable for all gauges up to 32mm - the bridge width is 38mm you could even squeeze in standard gauge O scale in an industrial layout. Remember its O scale. So if you use for OO or HO then the ties are a bit chunky

Features:

* pit walls have 2 options: the standard kit has wooden walls.

The resin cast walls are only included if the option is selected.

The cast walls are very easy to modify to suit terrain.

* running rail - assembled with a jig. really easy. Honest !

* bridge wheel housings correctly align the small brass wheels onto the rails.

* bridge is a simple girder design with wooden crossbeams to carry the rails. Looks industrial when weathered.

The 5" turntable drive train has metal gearing and shares the same features of its tried and trusted 9" bigger brother. Can be bought "without motor and gears" for a £10 saving if you have another rotation method in mind.

The turning plate transfers the primary shaft rotation to the bridge and carries power to the rails using sprung plunger contacts - a robust type used by the electronics industry. This is the same proven deisgn used in our HOn3 Durango TT and now sports a milled brass "key"

turning-plate-upgrade.jpg  turning-plate-upgrade2.jpg  turning-plate-pcb.jpg

The turntable features continuous power-routing (not a split ring design). Polarity is changed with a DPDT switch for DC(or DCC) use, or a DCC reversing module can be used to ensure continous operation of a sound chip. wiring instructions and schematics are included in the instructions.

The MK2 kit does not include track rails. There are so many options that it is easier for you to supply and fit your own.


The turntable will require a 5 11/16" (144mm) diameter hole to be cut into the baseboard.  (just use the pit base as a template!)



Simple, effective, reliable and affordable.


Find Similar Products by Category


Write your own product review

Product Reviews

  1. Built up one...ordering a second one ! 5 Star Review

    Posted by on 5th Dec 2018

    Finished turntable #1 a while ago, ready to install in layout. This little guy runs like a jeweled watch. Smooth & quiet. Will be ordering #2 when they are back in stock next month.


  2. The 5" Critter turntable is amazing 5 Star Review

    Posted by on 9th Aug 2018

    I ordered the turntable with the stone wall. A wonderful model that works very well. I power it with a 3v adapter. I considered using a voltage control, but with 3v it looks just right. It's not indexed, and that's a good thing. You can roll a small critter or Porter onto it, and send the loco in whatever direction (taking for granted there are rails) you need it.

    I build modules for use on my groups' modular layout. There are two Kitwood Hill turntables on the pair I'm running now. The other is the 54' gallows turntable. I like to let them run, even if I'm not going to run trains. It just looks good.


  3. Simple and reliable 5 Star Review

    Posted by on 1st Jan 2013

    It is wonderful. Easy to follow step by step instructions. Alle parts fit without problems. The motor does its work silently and smooth. This turntable is good value for your money and a enrichment for any lay out.! (MK1 deck type)
